Displaying details for 13t/14t Excavator

 13t/14t Excavator

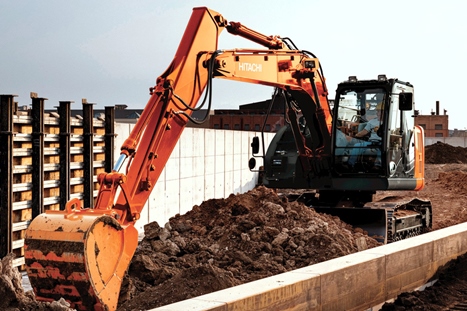

Machine Make & ModelHitachi ZX135US-5
OverviewVersatile and reliable zero tail swing 14t excavators, proven to be ideally suited to housing, civil engineering and agricultural groundwork contracts, especially where working space is restricted.
Standard Weight13.70 t
Engine Output65 kW
Max. Digging Depth6.02 m
Max. Ground Level Reach8.76 m
Bucket Breakout86 kN
Track Width2.69 m
Track TypeSteel or Rubber Pads
Max Lifting Capacity at Ground Level4.80 t
Min Lifting Capacity at Full Reach1.30 t
Quick HitchYes (automatic twin-lock)
Check ValvesYes
Safe Load IndicatorNo
Hydraulic Height RestrictionYes
3D GPS EnabledNo
Attachments

  • Buckets 18″, 2′, 2’6″, 3′, 4′, ditcher and ‘V’ bucket

  • Hydraulic Breaker

  • Compactor Plate

  • Pallet Tines

  • Riddle Bucket

  • Select a Grab

BrochureDownload Brochure
SummaryVersatile and reliable zero tail swing 14t excavators, proven to be ideally suited to housing, civil engineering and agricultural groundwork contracts, especially where working space is restricted.
